ERP Automatic Shrink Packaging - Perpendicular Feeding

ERP Automatic Shrink Packaging - Perpendicular Feeding

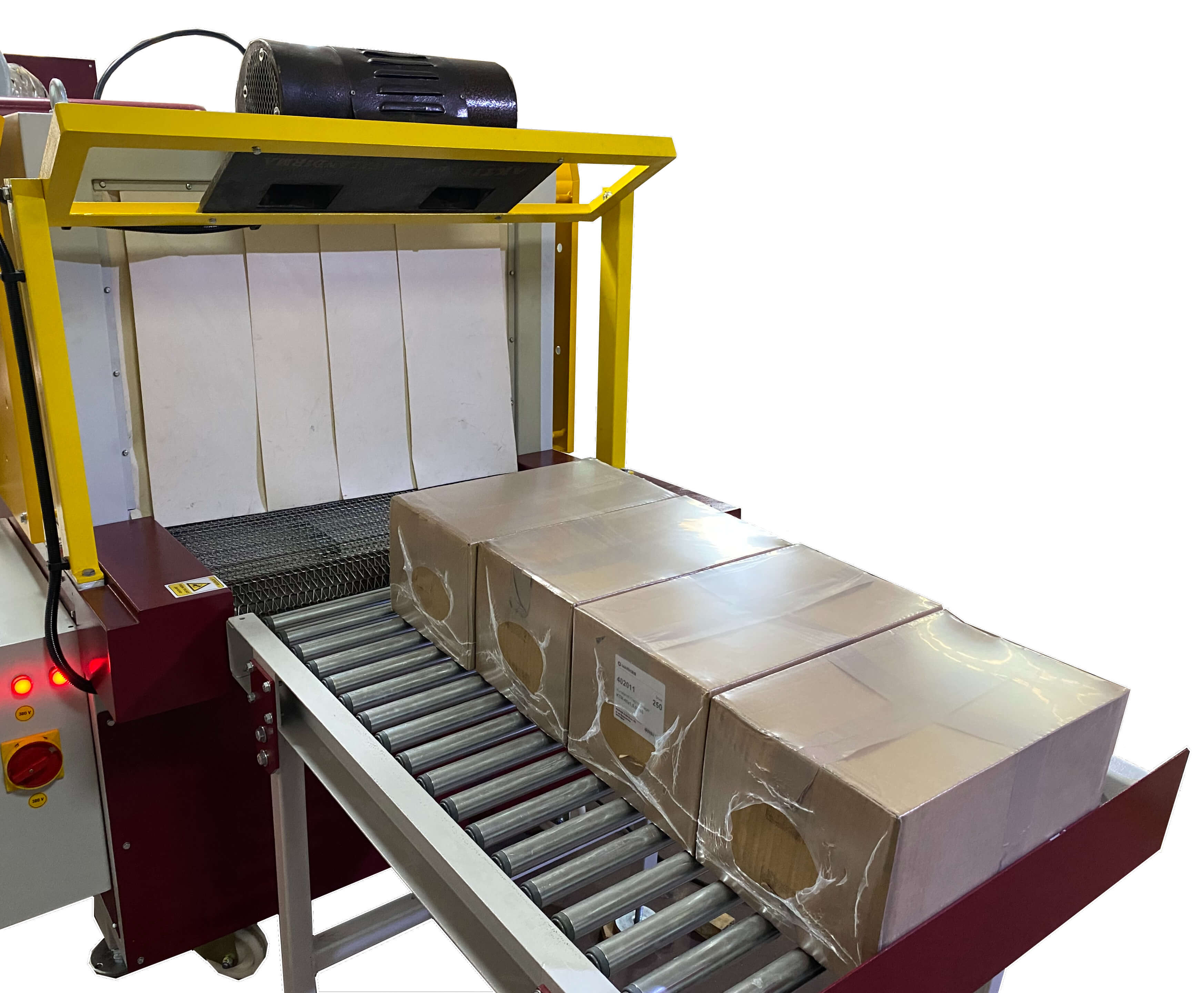

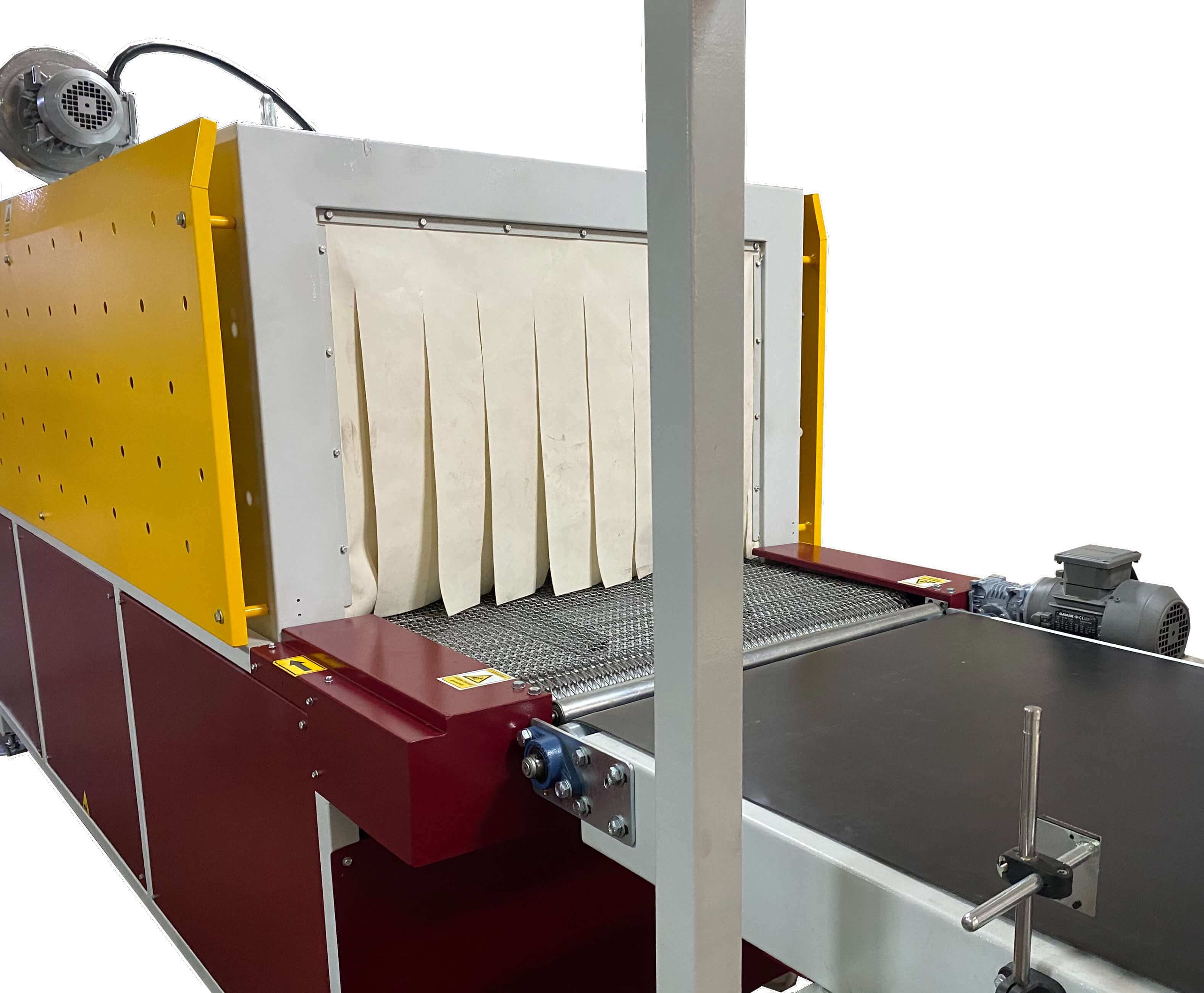

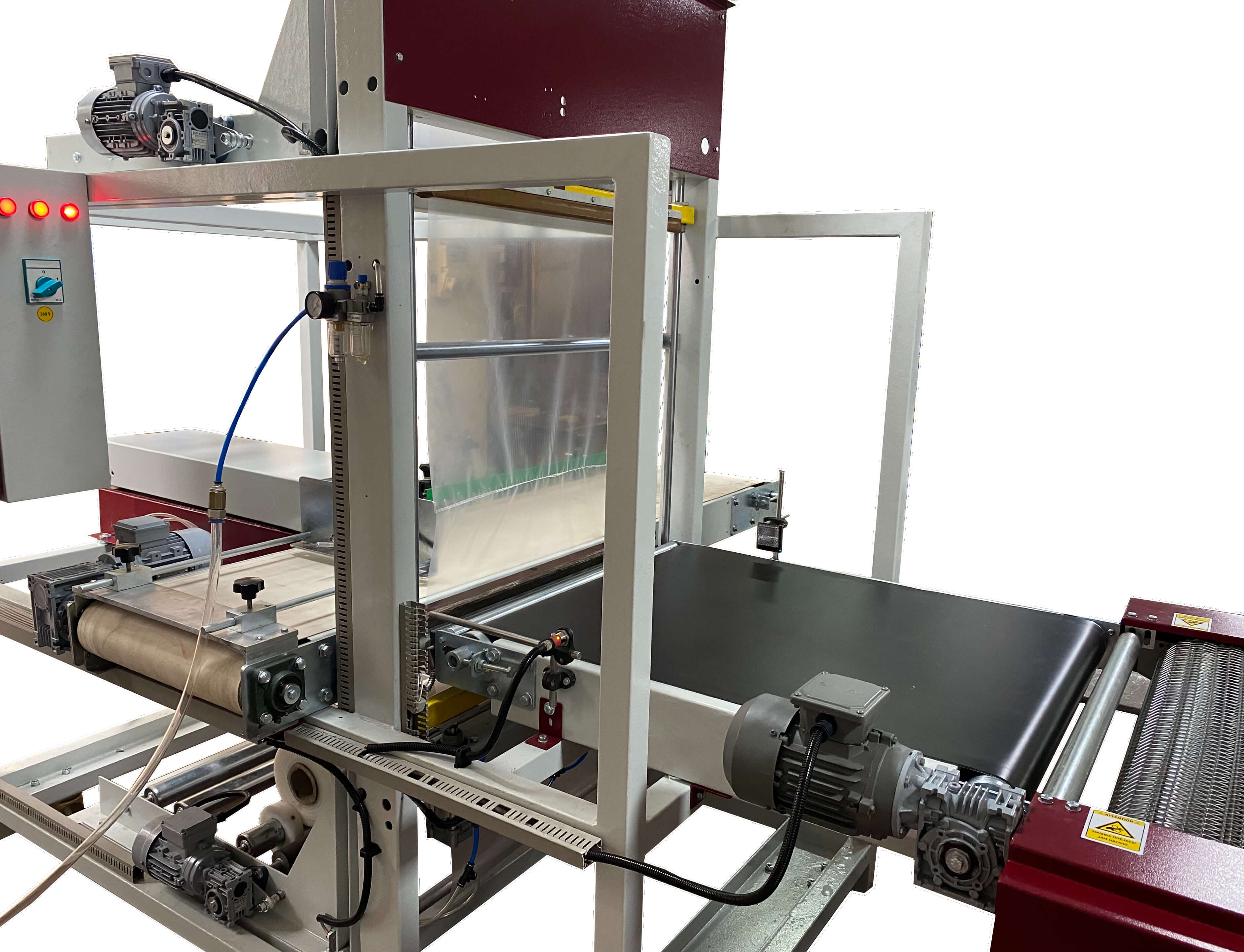

This product consists of a combination of a sleeve wrapping machine and a shrink tunnel. These are fully automatic heavy-duty shrink packaging systems designed for high volumes of production.

Product feeding is done by using a perpendicular belt that can be mounted on both sides. Modular design allows packaging of a wide range of products.

ERP Automatic Shrink Packaging - Perpendicular Feeding - Areté Group Packaging Machinery and Conveyor Solutions

Main Features

  • Heat control sensors on the sealing jaw
  • Perpendicular feeding belt that can be mounted on both sides
  • Automatic product counting
  • Air circulation with double fans
  • Products can be automatically grouped into 6, 12, or 24 pieces

Technical Specifications

  • Perpendicular feeding belt that can be mounted on both sides
  • PLC operator panel
  • Jaw temperature control via PLC
  • Automatic product counting
  • Working with pneumatic system 24V
  • Automatic film opening unit
  • Working with PE Film
  • Capacity 10–12 packs/min.
  • Wire Belt
  • Motor-Reduced drive system
  • Tunnel belt speed control unit
  • Air circulation with double fan
  • Heating with resistors
  • Temperature controlled with thermostat
  • Hot air circulation with radial fan
  • Volute fan with aluminum body

Get in touch

Need assistance? We're here to help and answer any questions you might have.

Areas of Use

Beverage industry
Beverage industry
Pharmaceutical industry
Pharmaceutical industry
High performance when packaging cubic-shaped products
High performance when packaging cubic-shaped products
Cleaning products
Cleaning products
Cosmetics
Cosmetics
