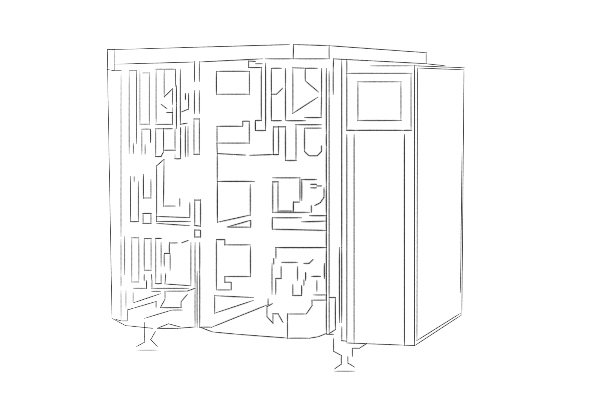

EVT250 Dual Pack

Intermittent motion is a traditional and most used technology in the market today. It is the preferred option in many applications because of the advanced packaging capabilities of the intermittent motion. In addition to this, simplicity and versatility are the main features of this model.

By using Servo-Motion Technology, EVT250 Dual Pack machines reach the maximum speed that intermitted motion technology could achieve and doubles the production in the same space you can achieve with single tube machines.

The modular design of the machine reduces maintenance and operating costs. It also allows quick changeover and setup and requires only one operator. And probably the most attractive benefit is the ability to pack two different weights at the same time.

Main Features

Twin tube design (Two Outputs) / Ability of packing two different weighs at the same time
Twice the production in same space as a single tube
Parts that are in contact with product produced from stainless ANSI 304 CR-NI steel
Adaptable for various types of filling Systems Multi-head Weigher, Linear Weigher, Volumetric Dosing, Auger Filler, Piston filler, etc.
Bag material : Polipropilen , all laminated films, poliethilen
Adaptable for different sealing systems such as; easy-open bag, euro-slot bag, round hole bag, straight cut, tear notch cut, and zig-zag cut (OPTIONAL)

Technical Specifications

Dimensions
Widht	1935 mm
Length	2045 mm
Height	1690 mm
Weight	1400 kg
Mechanical Speed (Bag/min)	180
Operational Speed (Bag/min)	140
Bag length (Min. – Max.)	40 - 350 mm
Bag width (Min. – Max.)	30 - 240 mm
Reel Outer diameter	400 mm
Reel Width	500 mm
Power Requirement	6 KW
Voltage requirement	380 V 3 Phase 50 Hz
Air Requirement	150 lt/min.
Air Requirement (Min.)	6 Bar

Get in touch

Need assistance? We're here to help and answer any questions you might have.

Package Types

Bag Type PP

Bag Type GB

Bag Type GB-AB

Bag Type GBI

Bag Type GBMI

Bag Type GBM

Bag Type GBC
