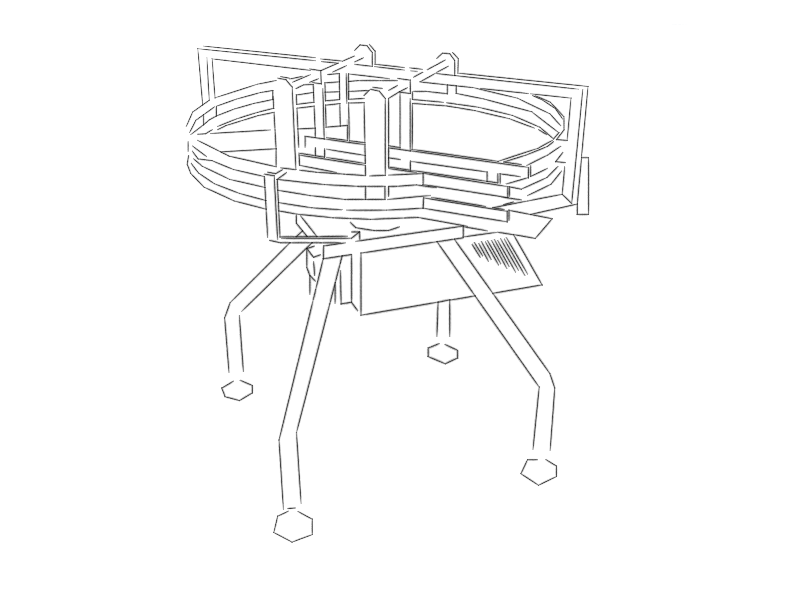

FT Rotary Feeding Table

FT Rotary Feeding Table

Rotary tables are the most cost-effective way to automate the feeding of bottles and jars, usually at the beginning or end of a packing line.

Rotary In-feed tables work best with round bottles which do not require orientation. Some square or oval-shaped containers can also be handled with additional orientation mechanisms.

Thanks to its compact design, the Rotary Feeding Table can easily integrate into your existing production line without wasting too much space. Its intuitive controls and low-maintenance requirements make it an ideal addition to any manufacturing facility, allowing you to increase productivity and reduce downtime.

FT Rotary Feeding Table - Areté Group Packaging Machinery and Conveyor Solutions

Main Features

  • Feeding table array the packages in a sequence and feed into the conveyor systems, air rinsers, or filling machines
  • Capable of feeding hexagonal and square jars with the optional sorting mechanism
  • The height of each leg can be adjusted separately
  • The machine parts are made of 304L stainless steel and anodized aluminum
  • Adjustable speed
  • Easily integrated into packaging lines

Technical Specifications

Capacity
4800 Pack/hour
Velocity
7 turns/min
Diameter
9800mm / 1200mm
Height
900mm (+/- 50 mm adjustable)
