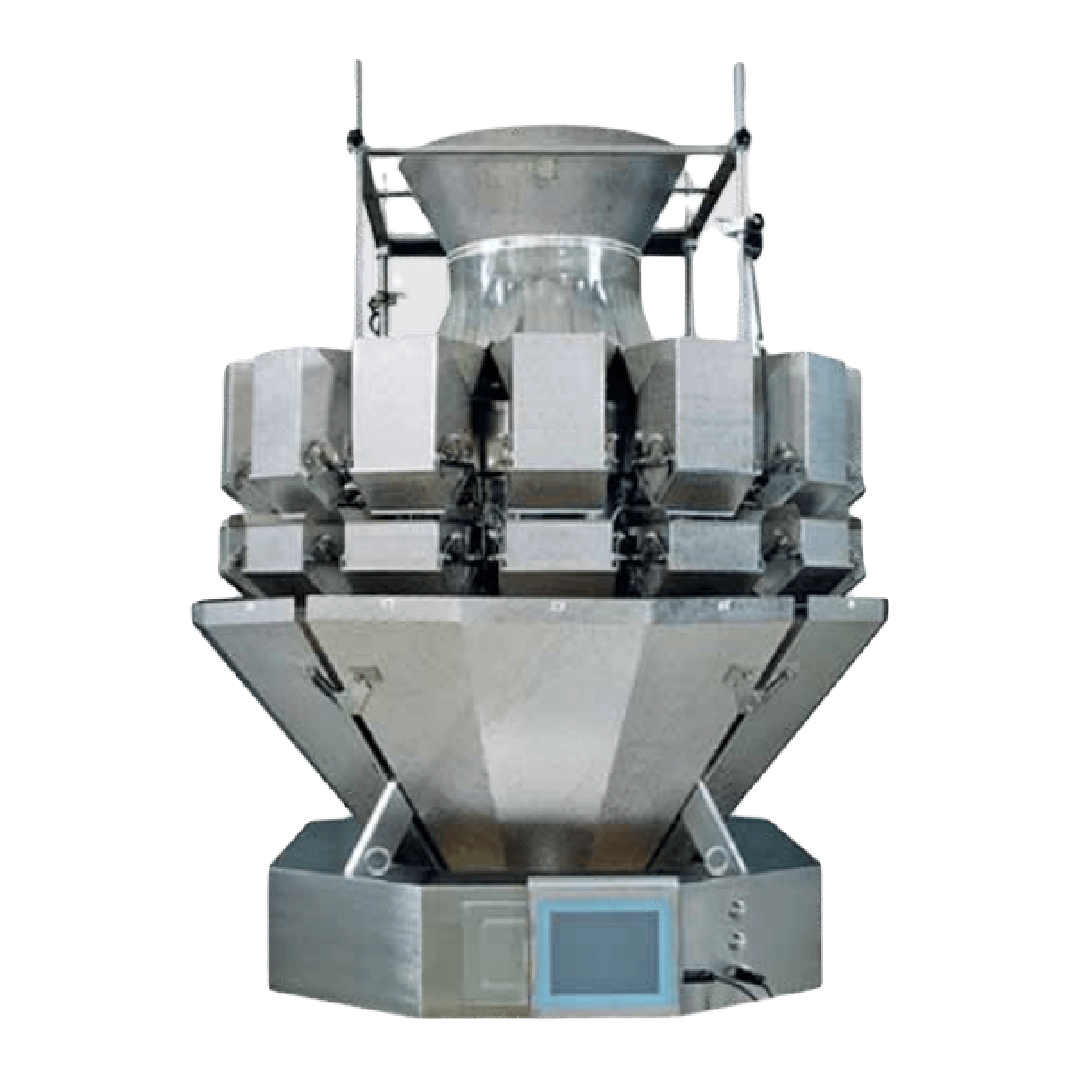

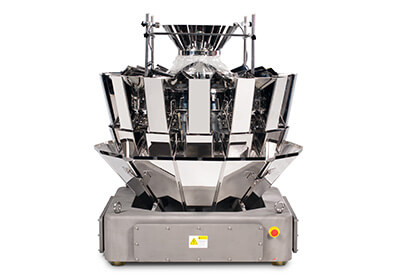

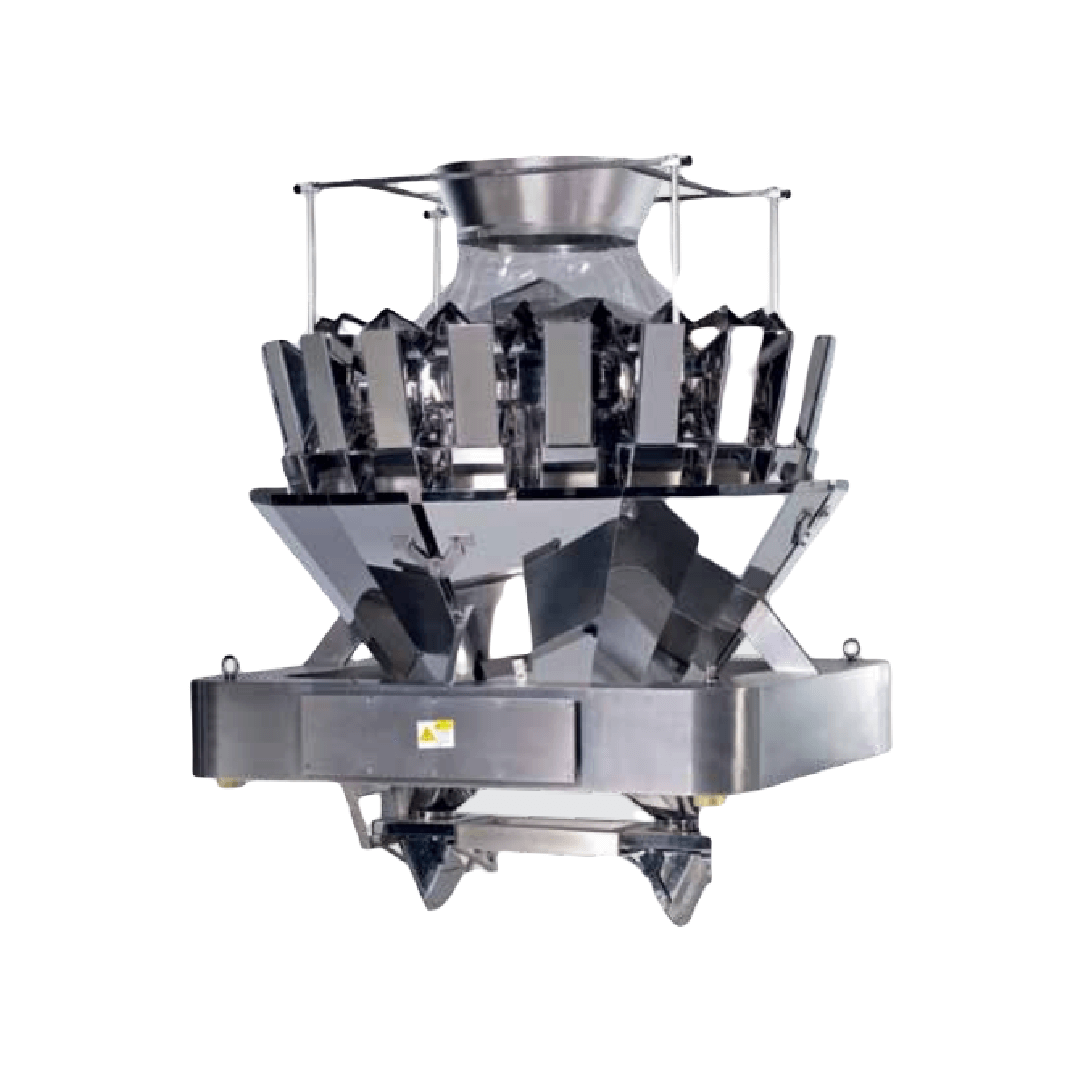

PCM Multi-head Combinational Weighers

Body made of stainless steel ANSI 304 Cr-Ni
Easy setup from one product to another
Automatic cleaning and disposal
Self-diagnosis
50 preset programs / Accuracy: 0.1 - 0.2 gr. / Speed: 60 - 130 depending on the number of heads (and the product)
Number of Heads: 10, 14 and 20 heads models are available

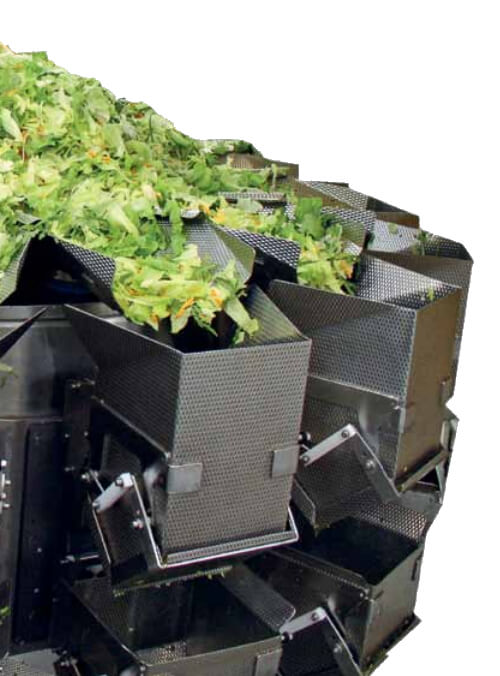

Special application on the surface: Dimpled, Teflon coated, to be suitable for frozen food and sticky product

Technical Specifications

MODEL	MW-10	MW-14	MW-20	MW-10L	MW-14L	MW-10M
Number of baskets	10	14	20	10	14	10
Weight Limit	1000 gr	1000 gr	1000 gr	2500 gr	2500 gr	250 gr
Precision	0.1 gr	0.1 gr	0.1 gr	0.1 gr	0.1 gr	0.1 gr
Capacity	65 / min	90 / min	135 / min	55 / min	75 / min	75 / min
Basket Volume	1.6 lt	1.6-2.5 lt	1.6 lt	5 lt	5 lt	0.5 lt
Power requirements	220 V 50 hz 1.5 KW	220 V 50 hz 2 KW	220 V 50 hz 3 KW	220 V 50 hz 1.8 KW	220 V 50 hz 2.5 KW	220 V 50 hz 0.8 KW
Dimensions	A= 1310 B= 1135 C= 1150	A= 1400 B= 1180 C= 1220	A= 1629 B= 1665 C= 1665	A= 1828 B= 1733 C= 1565	A= 1982 B= 1932 C= 1565	A= 800 B= 800 C= 961
